Ethernet LAN Switching (Part2)



ARP (Address Resolution Protocol):

-> Discover Layer 2 address (MAC) of a known Layer 3 address (IP)

-> consist of:

- ARP Request: broadcast (sent to all host)

- ARP Reply: unicast (sent to one host)

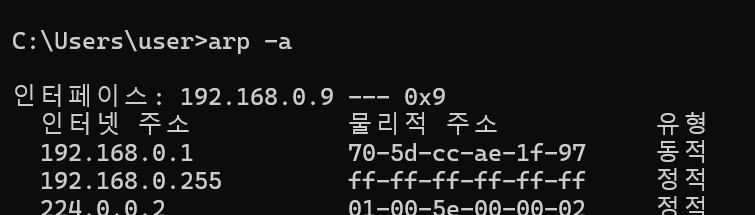

-> cmd: arp -a

-> cml: show arp

• Internet Address = IP Address
• Physical Address = MAC
• Type static = default entry
• Type dynamic = learned via ARP







* Broadcast MAC address : FFFF.FFFF.FFFF



Ping:

-> test reachability

-> measures round-trip time

-> consists of ICMP Echo Request / ICMP Echo Reply (both unicast)

-> cmd: ping (ip-address)





MAC Address Table:

//CLI

SW1# show mac address-table

-> Shows all MAC Address Table entries consists of Vlan, MAC, Type, Ports

SW1#  clear mac address-table dynamic address [mac-address]

-> Removes all MAC Address Table entries which [mac-address]

SW1#  clear mac address-table dynamic interface [interface-id]

-> Removes all MAC Address Table entries which [interface-id]



---

Acronyms

• ARP : Address Resolution Protocol
• ICMP : Internet Control Message Protocol
